How to Do LoRA Fine-Tuning: Practical LLM Workflow for 2026

Swarnava DuttaAugust 17, 20269 min read

LoRA Fine Tuning Tutorial

Contents

Illustration of how to do lora fine tuning: A massive riveted steel gear spans the left frame, motionless; meshed with it on

The first time I tried to learn how to do LoRA fine-tuning, I picked rank 64, left alpha at its default, targeted every linear layer, and wondered why my 24 GB GPU ran out of memory on a 7B model. The adapter was "small" - barely 1% of total parameters - yet I'd misconfigured enough knobs to burn an entire Saturday re-running failed jobs.

This guide covers what sits between "it works on a blog post" and "it works on my GPU." I'll walk through the tensor math, a runnable PEFT workflow, and the parameter choices that actually matter.

Quick answer

LoRA fine-tuning freezes a pretrained LLM's weights and injects small low-rank matrices into selected transformer layers. Only these adapter matrices train, cutting trainable parameters by roughly 100x. To run one, load a base model with Hugging Face PEFT, configure rank, alpha, and target modules in a LoraConfig, then train with a standard Trainer loop.

How LoRA Fine-Tuning Works: Low-Rank Updates by Shape

LoRA freezes every pretrained weight matrix and injects two small matrices that together learn a low-rank update. During training, gradients flow only through these adapters. During inference, you add the adapter product back into the frozen weight - the model architecture never changes.

This works because task-specific adaptations tend to live in a low-dimensional subspace of the full weight space [1]. You don't need a complete copy of every parameter to teach a model a new behavior.

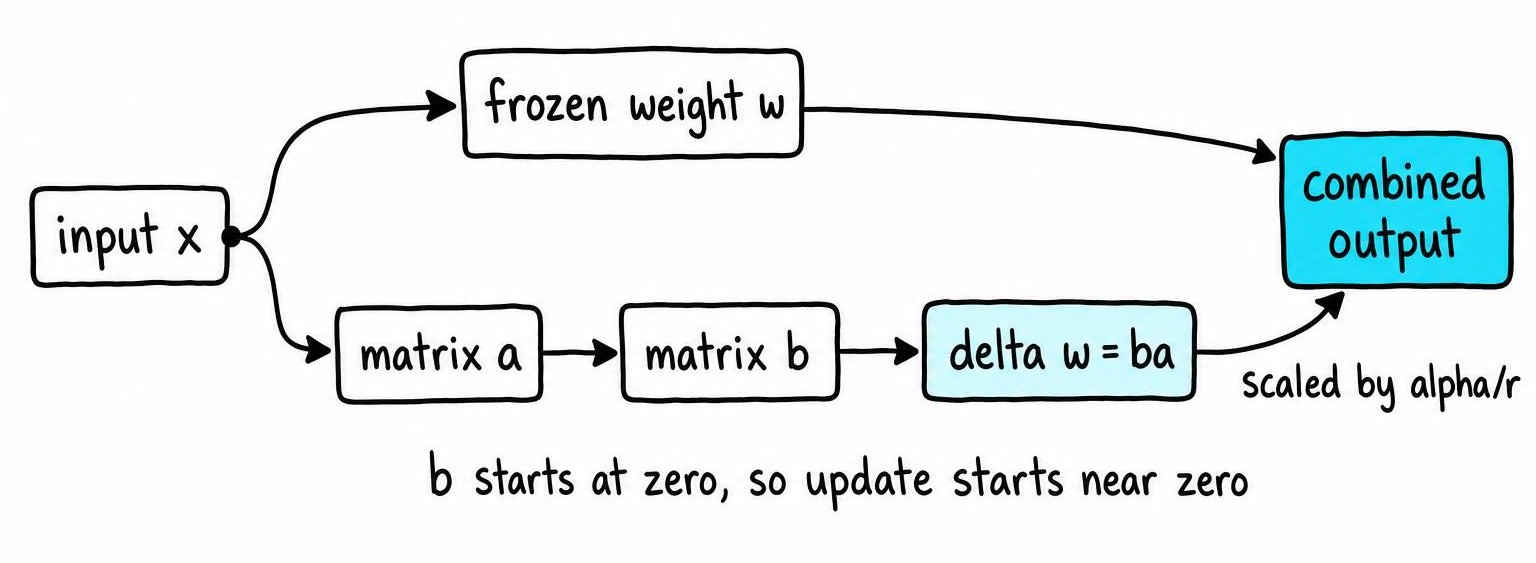

Diagram of LoRA fine tuning showing frozen weight matrix W combined with low rank matrices B and A forming the adapted layer output at inference — How a frozen weight gets a low-rank update at inference

Tensor Shapes and the LoRA Update Equation

Take a frozen linear layer with weight W of shape d_out × d_in. LoRA decomposes the update as ΔW = BA, where A has shape r × d_in and B has shape d_out × r.

The layer output becomes (W + BA)x. A scaling factor α/r multiplies BA so you can tune alpha independently of rank. At init, A gets a random Gaussian fill and B starts at zero - the initial ΔW is exactly zero, so training begins from pretrained behavior.

Trainable-Parameter Math for One Layer and the Full Model

One adapted layer adds r × (d_in + d_out) trainable parameters instead of d_in × d_out for full fine-tuning.

Worked example: A q_proj layer in a 7B Llama-style model has d_in = d_out = 4096. Full fine-tuning that layer means 4096 × 4096 = 16.8M parameters. With rank 16, LoRA adds 16 × (4096 + 4096) = 131K - roughly 128× fewer.

Scale that across q_proj and v_proj in 32 transformer layers and you're training about 8.4M parameters total versus billions frozen. Those frozen parameters still consume GPU memory for the forward pass - the savings come from optimizer states and gradients, which only track adapter weights. Understanding how quantization interacts with this matters when VRAM is tight.

Build the LLM Fine-Tuning Dataset, Metrics, and Baseline

Your fine-tuning dataset needs to mirror production exactly - same prompt templates, same response style, same task distribution. Format each example into instruction, input, and response fields, then apply label masking so loss ignores prompt tokens.

Split into train, validation, and held-out test sets. Check for duplication between splits, silent truncation at your max sequence length, and skewed length distributions that bias the model toward short outputs.

I once spent two days convinced my adapter was broken before discovering that roughly a third of my training examples were getting silently truncated at 2048 tokens - the model never saw the response portion of long examples, so it learned nothing useful from them. A quick histogram of tokenized lengths would have caught it in minutes.

Data quality deserves more scrutiny than hyperparameters. Inconsistent formatting - mixing chat-template styles, leaving stray system prompts in some examples but not others - teaches the model noise. Clean ten examples by hand and spot-check another twenty before committing to a run.

Before touching any adapter, run the base model on your test split and record task metrics, generation samples, and memory usage. I've had adapters that felt better during training but scored below the untouched base on held-out data because the training set was too narrow.

How to Do LoRA Fine-Tuning with Hugging Face PEFT

The workflow needs four libraries: transformers, datasets, peft, and accelerate. Training produces a small adapter directory containing config, weights, and tokenizer files. The base model never gets modified.

Set Up the Model, Tokenizer, and Training Environment

from transformers import AutoModelForCausalLM, AutoTokenizer

model_name = "meta-llama/Llama-3.1-8B"
tokenizer = AutoTokenizer.from_pretrained(model_name)
tokenizer.pad_token = tokenizer.eos_token

model = AutoModelForCausalLM.from_pretrained(
    model_name,
    torch_dtype="bfloat16",
    device_map="auto",
    attn_implementation="flash_attention_2",
)
model.gradient_checkpointing_enable()

If you add special tokens, call model.resize_token_embeddings(len(tokenizer)) before attaching any adapter. Leveraging Flash Attention here cuts activation memory significantly.

Attach the Adapter and Run the Fine-Tune

from peft import LoraConfig, get_peft_model, TaskType
from transformers import TrainingArguments, Trainer

lora_config = LoraConfig(
    task_type=TaskType.CAUSAL_LM,
    r=16,
    lora_alpha=32,
    lora_dropout=0.05,
    target_modules=["q_proj", "v_proj", "k_proj", "o_proj"],
    bias="none",
)
model = get_peft_model(model, lora_config)
model.print_trainable_parameters()  # expect < 1% trainable

args = TrainingArguments(
    output_dir="./lora-checkpoints",
    per_device_train_batch_size=4,
    gradient_accumulation_steps=4,
    num_train_epochs=3,
    learning_rate=2e-4,
    bf16=True,
    eval_strategy="steps",
    eval_steps=200,
    save_steps=200,
    seed=42,
)

trainer = Trainer(model=model, args=args, train_dataset=train_ds, eval_dataset=val_ds)
trainer.train()

If a job crashes, pass resume_from_checkpoint=True to pick up from the latest saved step.

Choose Rank, Alpha, Dropout, Target Modules, and Initialization

Rank controls adapter capacity. Rank 8 handles style shifts; rank 64+ suits complex domain adaptation but increases overfitting risk. Start at 16 and adjust based on validation loss. I've had rank-8 adapters outperform rank-64 on classification simply because the higher rank overfitted a small dataset.

Alpha scales the update by α/r. Doubling alpha with fixed rank doubles the adapter's effective learning rate. A common default sets alpha to twice the rank, but don't tune alpha independently from your optimizer LR - they multiply.

Dropout acts as regularization when your dataset is small. Values around 0.05-0.1 help when you have fewer than around 10K examples. On larger datasets, dropout tends to slow convergence without improving generalization, so I typically set it to zero and rely on early stopping instead.

Target modules determine which layers get adapters. Attention projections are the minimum viable choice. Adding MLP layers (gate_proj, up_proj, down_proj) increases expressiveness at a memory cost. Don't copy module names from tutorials written for a different architecture - print them with model.named_modules() and match yours.

Initialization: Standard LoRA uses Gaussian A and zero B. PEFT also supports PiSSA and LoftQ for quantization-aware scenarios [2]. Treat every default as a starting point and tune against validation behavior.

LoRA vs QLoRA vs Full Fine-Tuning: Memory and Compute

Criterion	Full Fine-Tuning	LoRA (bf16)	QLoRA (4-bit base)
Base-weight precision	bf16 / fp32	bf16	NF4 (4-bit)
Trainable parameters	100%	~0.5-2%	~0.5-2%
Optimizer memory	All params	Adapter only	Adapter only
Training speed	Slowest	Faster	Slower than LoRA
Min VRAM (7B, approx)	~60 GB+	~18-24 GB	~10-14 GB
Deployment	Ship full model	Merge or serve separately	Merge, then re-quantize

VRAM estimates above are approximate and vary significantly by optimizer, sequence length, and framework version.

QLoRA loads the base model in 4-bit NF4 format, cutting base-weight footprint roughly 4x because each weight is stored in fewer bits than standard 16-bit precision. Peak VRAM still depends heavily on sequence length and micro-batch size - gradient checkpointing trades compute for memory by recomputing activations during the backward pass.

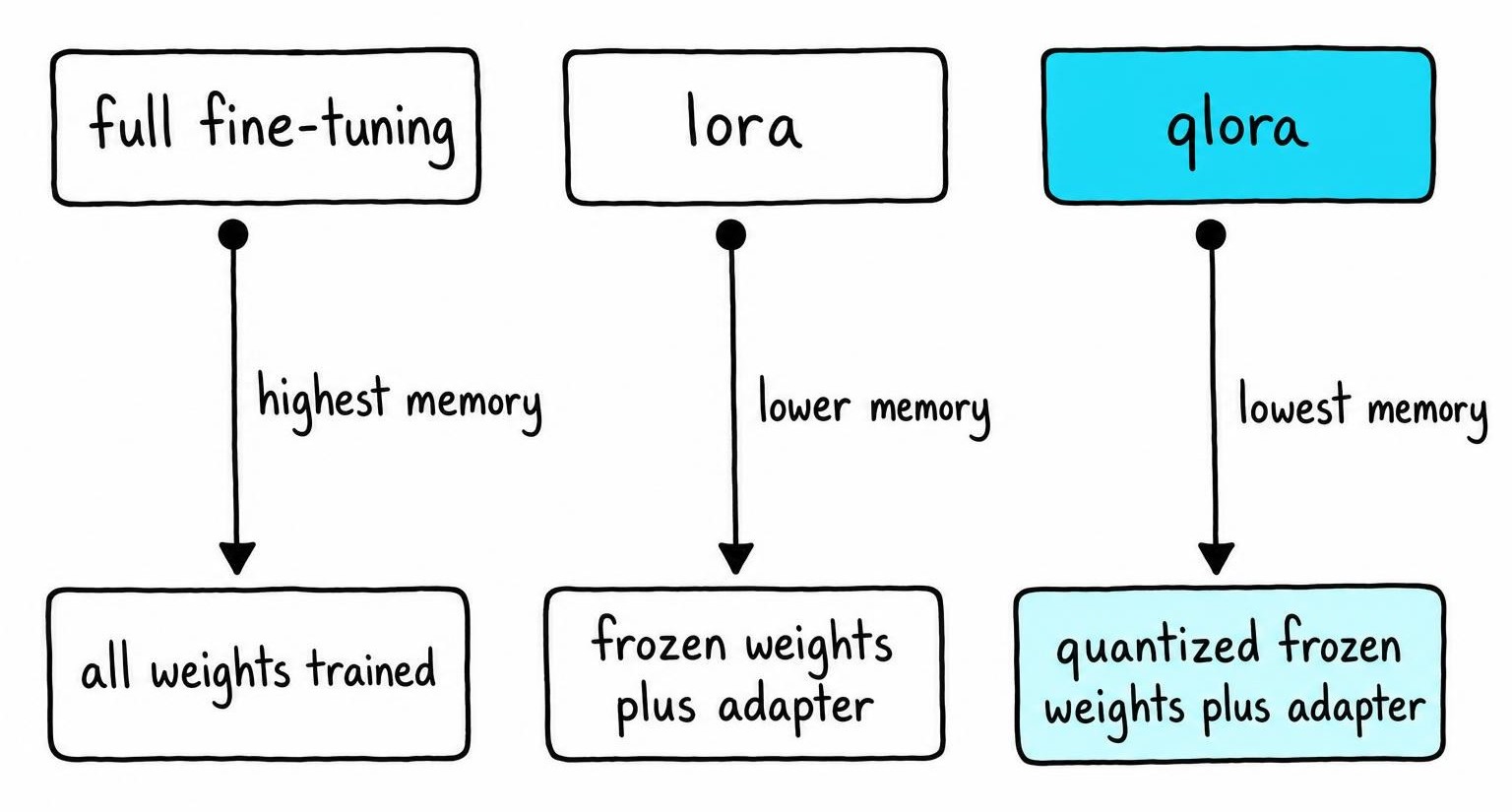

Comparison diagram of full fine-tuning, LoRA, and QLoRA showing which weights are updated and how memory footprint differs — Three ways to fine-tune, by what stays frozen

Before committing to a long run, do a preflight:

Run 5-10 training steps on real data
Call torch.cuda.max_memory_allocated() after those steps
Verify peak usage stays under 85% of GPU capacity
Watch for variable-length batches that spike memory later

I lost three hours to an OOM that hit at step 400 when a longer-than-average batch finally appeared.

Evaluate and Debug a LoRA Fine-Tune Before Deployment

Run your adapter model against the same test split, prompts, and decoding settings used for the baseline. Check both task improvement and regressions in instruction following, formatting, and safety.

Always pair loss curves with actual generation samples. Validation loss can drop steadily while the model memorizes training examples verbatim - I've watched loss improve for three epochs straight while generation quality peaked at epoch one.

Print ten random completions from each checkpoint against the same held-out prompts and read them. No metric substitutes for seeing the model repeat a training example word-for-word when you expected generalization. Compare outputs side-by-side with the base model - if the adapter improves task performance but mangles general instruction following, you've overfit to your narrow distribution.

Diagnose OOM Errors, Weak Learning, and Overfitting

OOM: Reduce batch size first, then sequence length. Enable gradient checkpointing. Switch to QLoRA as a last resort.

Flat loss: Verify print_trainable_parameters() shows non-zero trainable count, target module names match the architecture, label masking isn't zeroing all labels, and training data format matches the tokenizer's chat template.

Overfitting: Reduce epochs, lower rank, add dropout, or pick an earlier checkpoint. Watch for silent truncation - samples exceeding max_seq_length lose response tokens without warning. Understanding how guardrails interact with fine-tuned models helps catch safety regressions early.

Save, Merge, and Serve the LoRA Adapter Safely

Save adapter and tokenizer separately with model.save_pretrained(). Record the exact base-model revision hash - without it, you can't reproduce the merge later.

Keep adapters separate for small artifacts, multi-task hot-swapping, or frameworks like vLLM. Merge when you want a standalone model with no PEFT dependency.

Merging with merge_and_unload() creates a full-precision copy in memory. If the base was loaded in 4-bit for QLoRA, reload in bf16 before merging, since PEFT can't merge into quantized weights. Before publishing, compare merged outputs against adapter-based outputs with greedy decoding.

I once shipped a merged checkpoint where a dtype mismatch shifted outputs just enough to break structured JSON generation - greedy decode diverged after token 40. Keep the original adapter archived even after merging, then benchmark latency and output quality in your actual serving stack.

FAQ

How does LoRA fine-tuning work?

LoRA freezes all pretrained weights and injects two small matrices (A and B) into selected layers. These matrices multiply to form a low-rank update scaled by alpha/rank. Only the adapter matrices receive gradients during training. At inference, the adapter product merges back into the original weight, adding zero architectural overhead.

What's LoRA fine-tuning?

LoRA (Low-Rank Adaptation) fine-tuning is a parameter-efficient method for adapting large language models to new tasks without retraining all weights. It inserts trainable low-rank matrix pairs into transformer layers, typically reducing trainable parameters by around 100× while preserving most quality.
